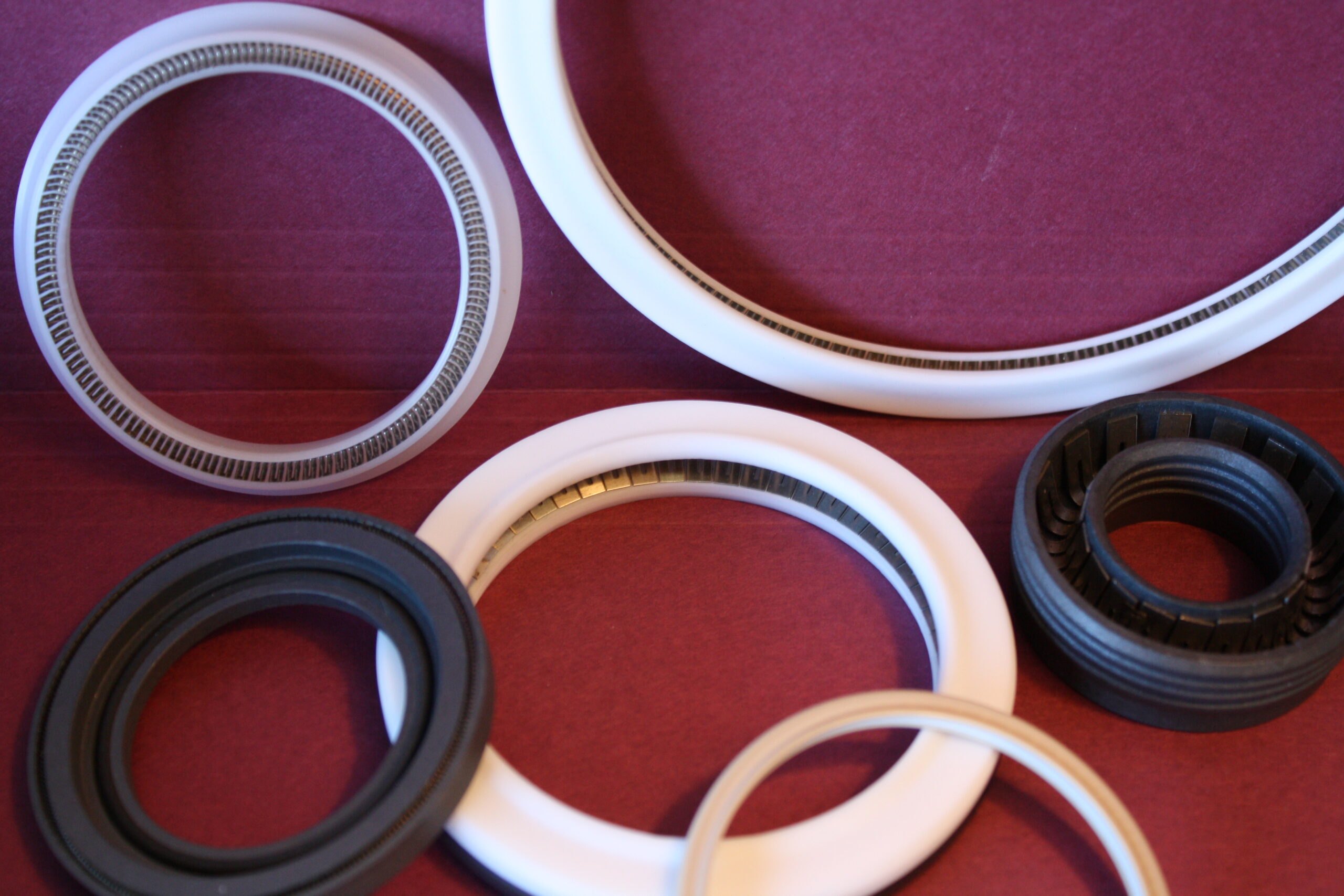

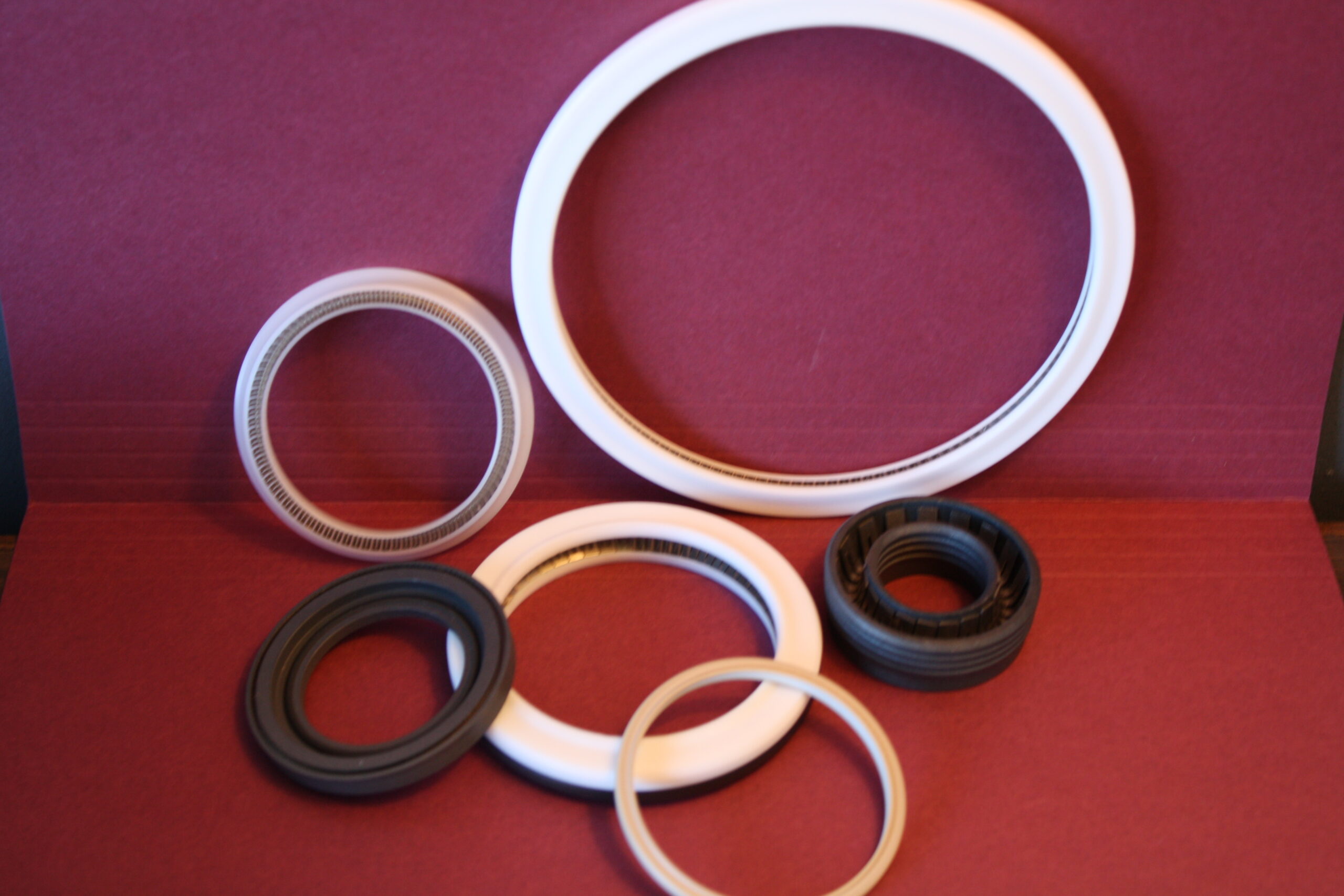

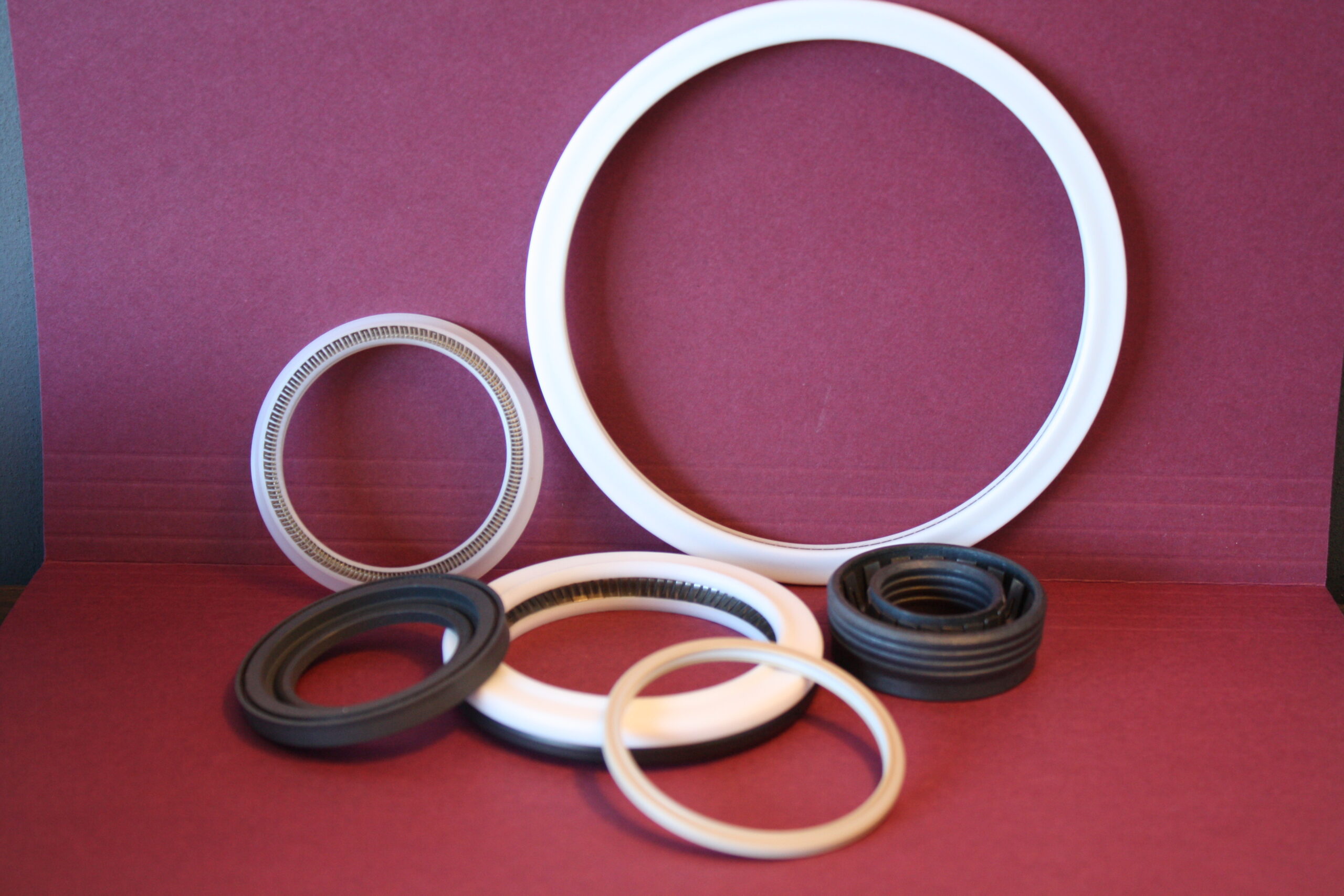

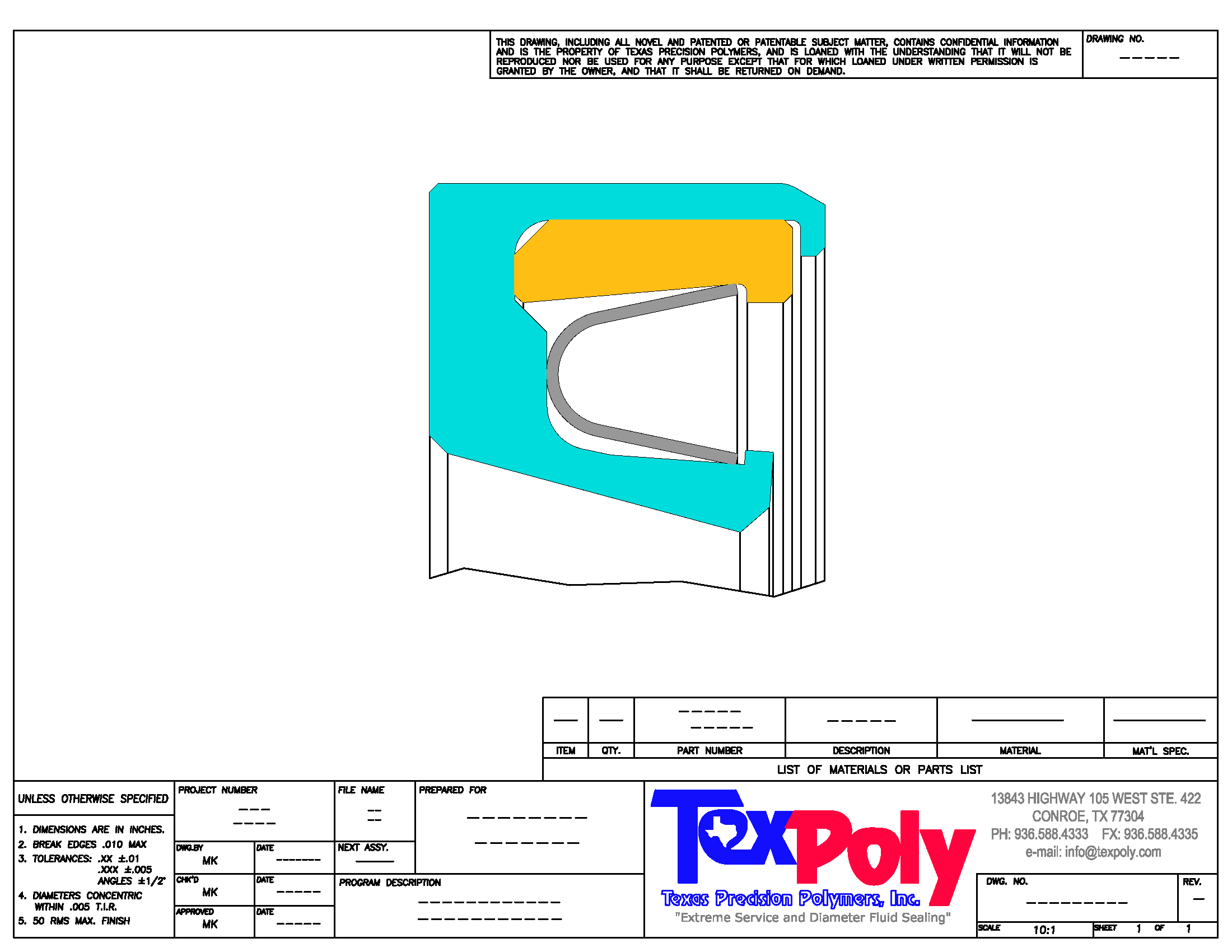

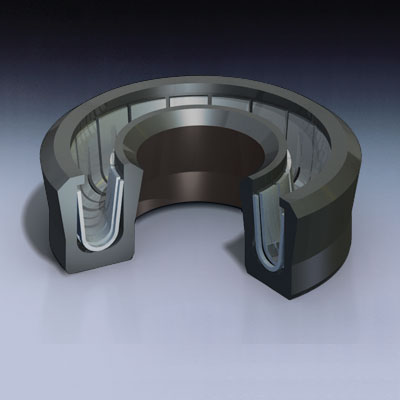

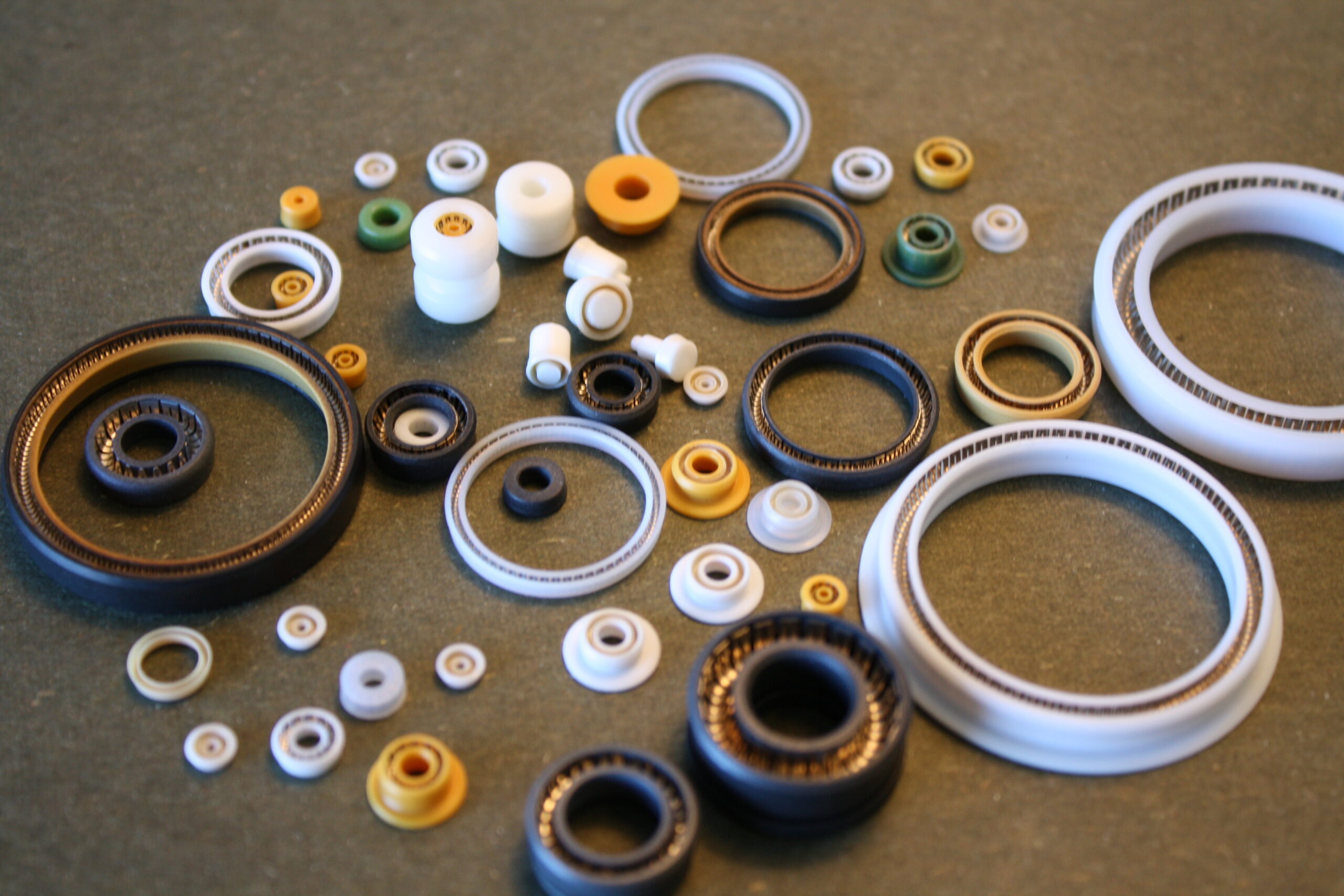

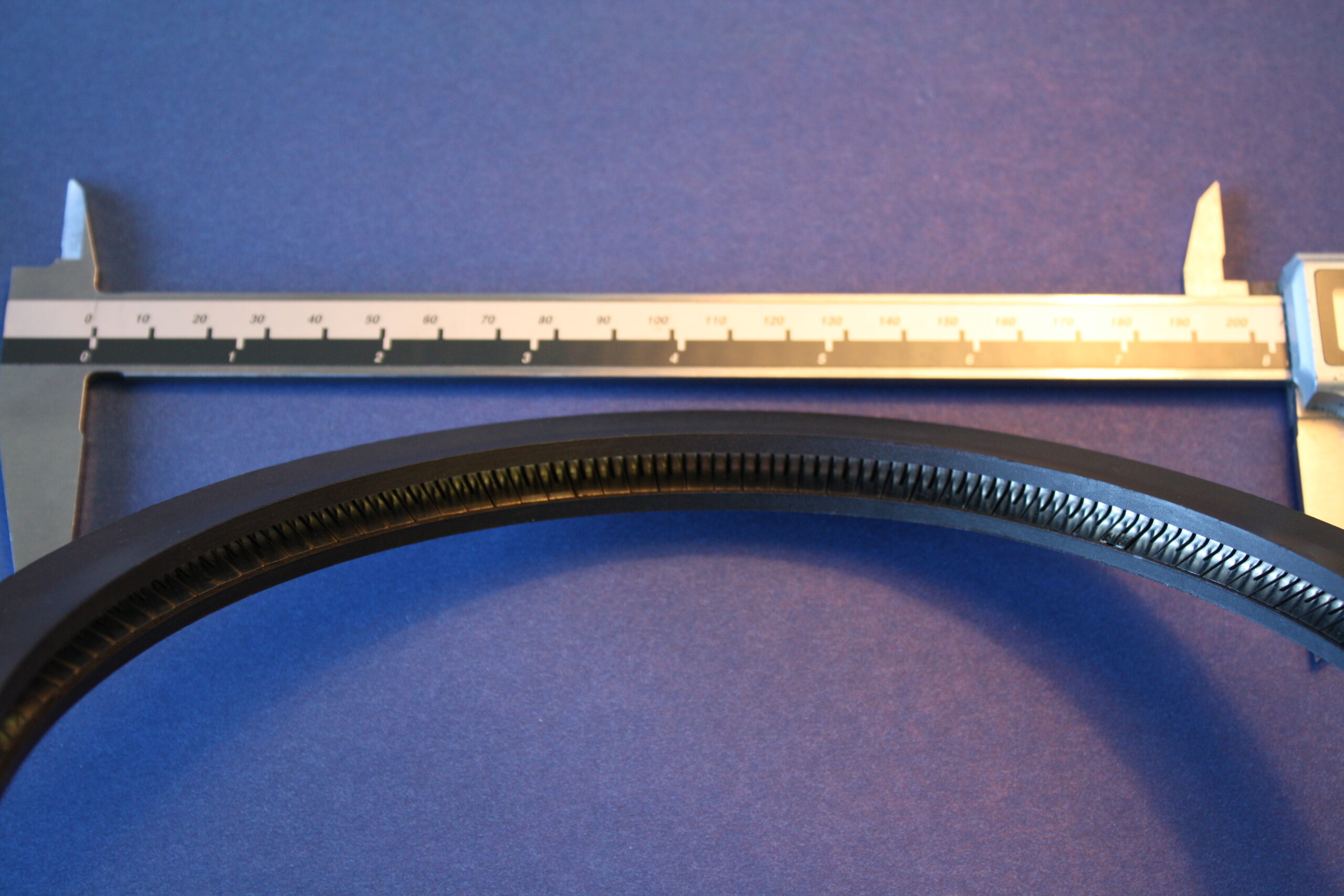

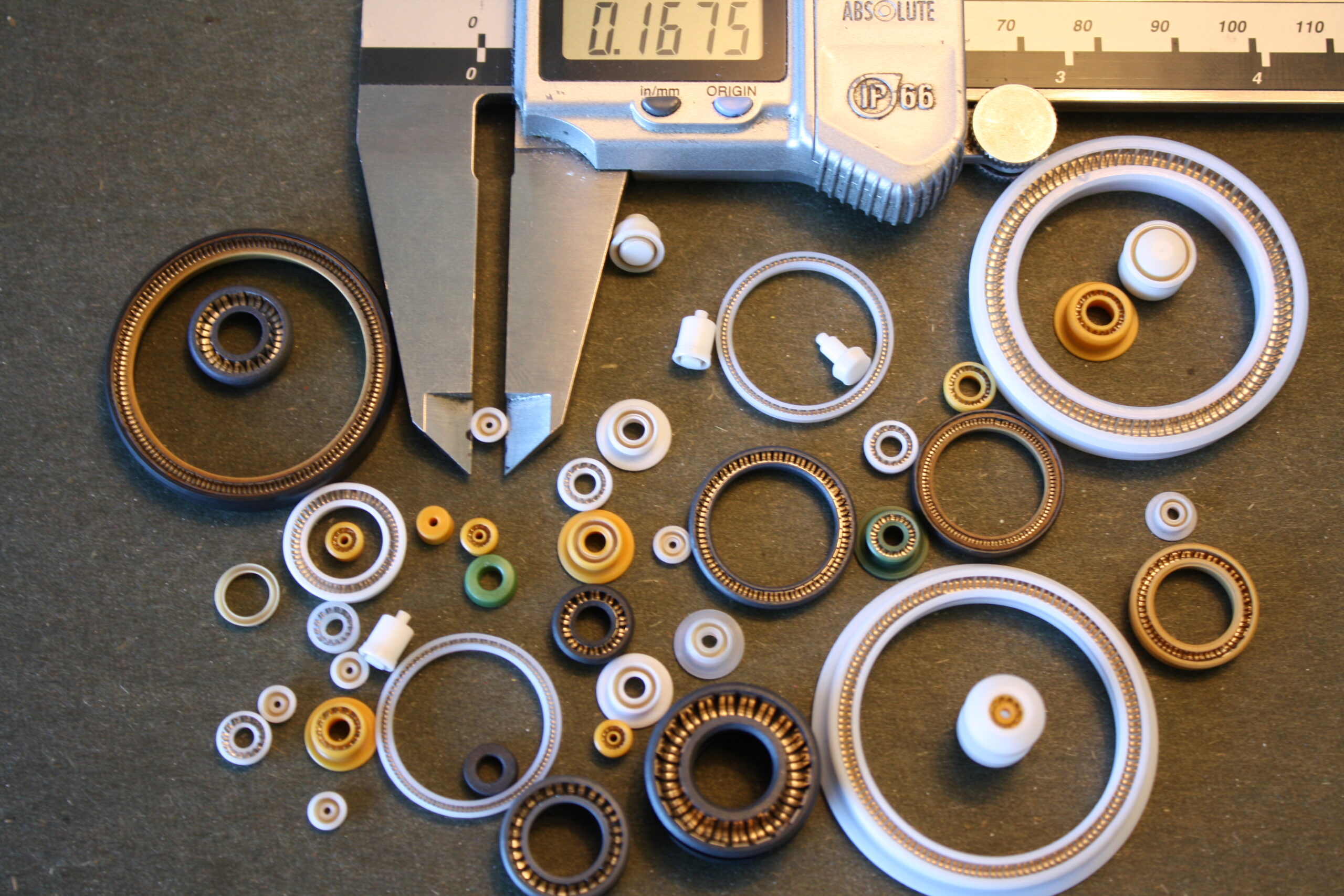

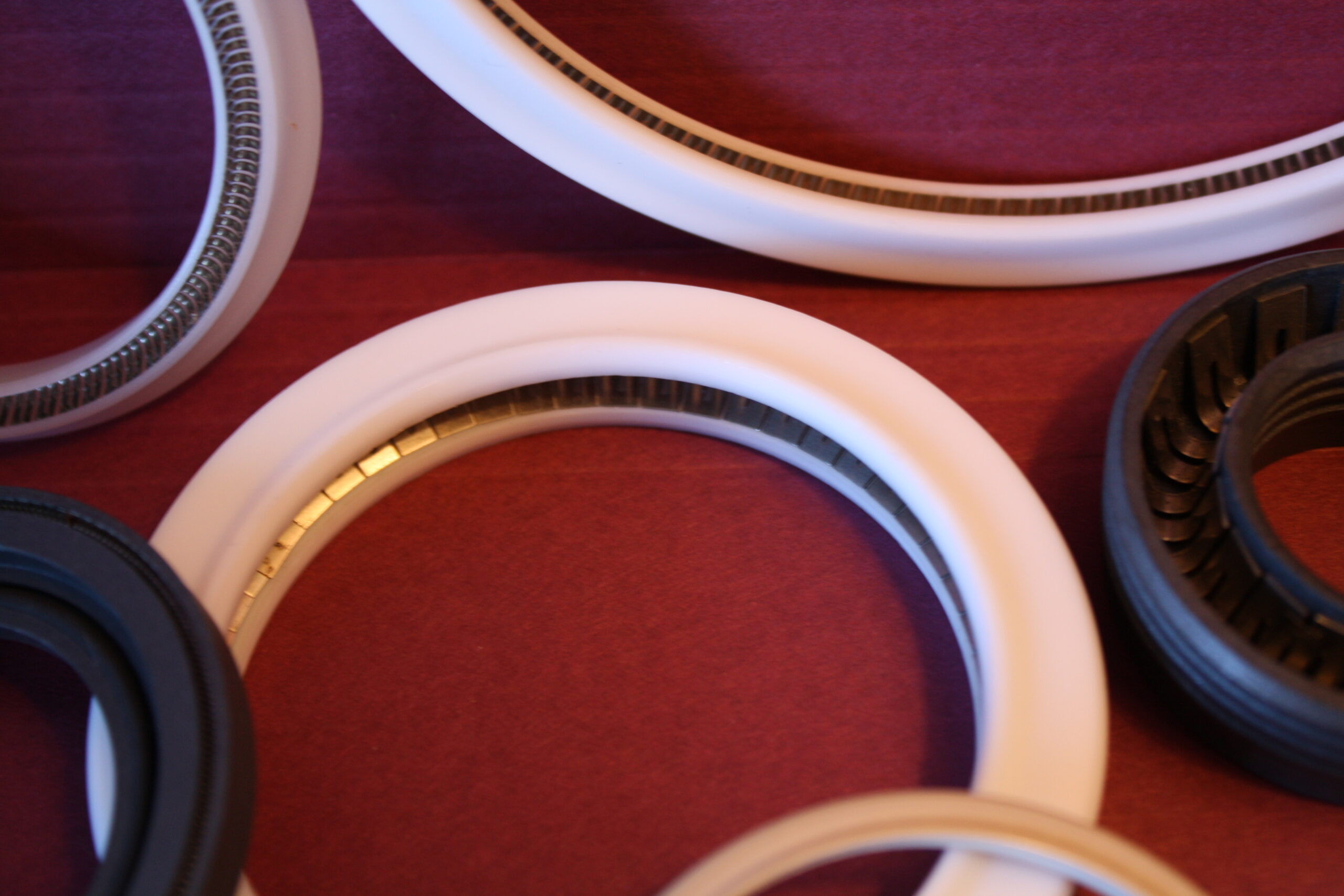

Cantilever Spring Seal 100 Series
“U” & “V”-shaped cantilever spring seals provide mechanical compressive force to the seal jacket, utilizing spring load from cantilever compression to initiate sealing. The Cantilever Spring Seal 100 Series is system pressure- activated, with differential pressure assisting as the primary sealing force.
Key Benefits & Applications
Optimized seal performance at lower system pressures (≤100–5000 psi)
Essential for sealing due to material wear, thermal effects, eccentricity, and surface imperfections
Ideal for reciprocating, oscillating, and angular motions
Low dynamic friction achievable with proper spring and seal jacket selection
Load & Size Variability
Load-per-inch deflection: 3 to 35+ lbs per linear inch
Spring rate varies by cross-section, thickness, and geometry
Available cross-sections: 1/16″ to 5/8″ (custom sizes available)
Specialized Designs

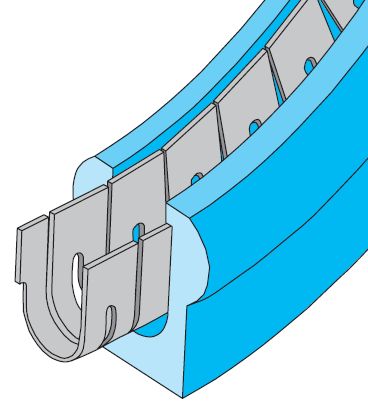

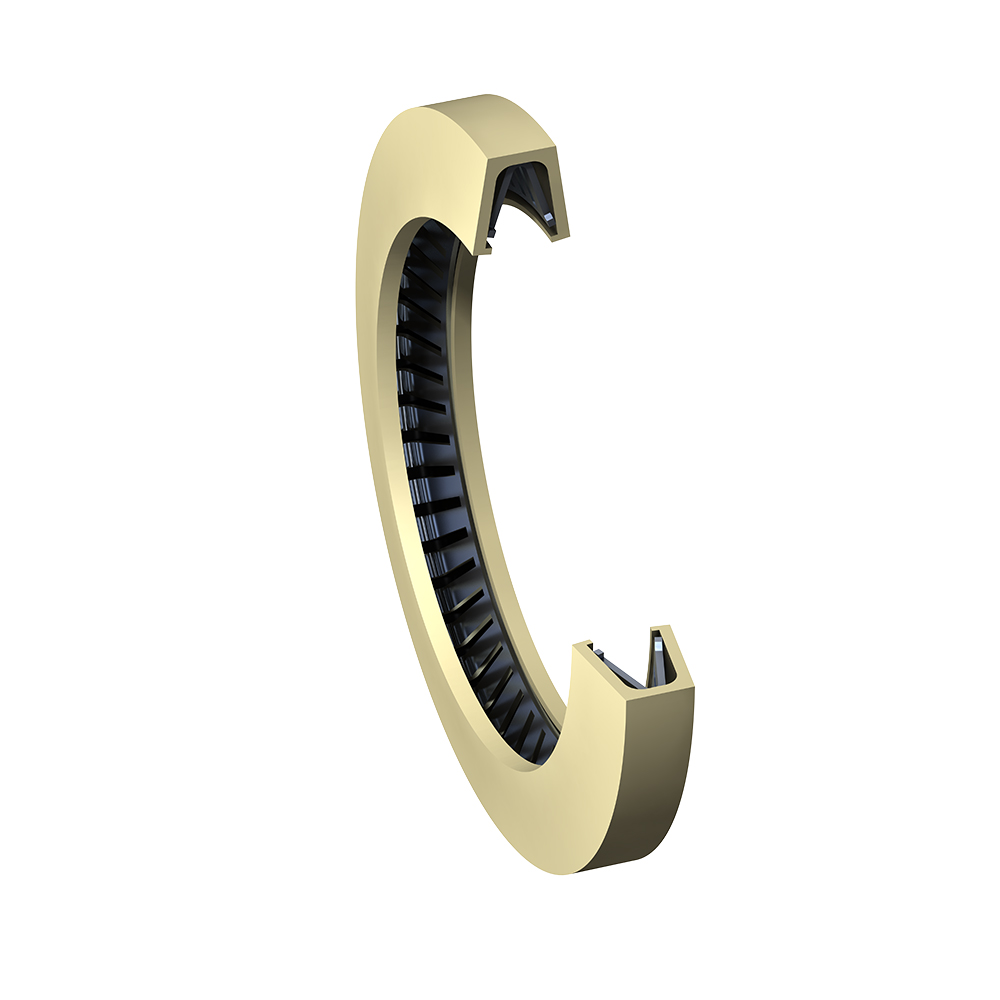

Etched & Formed "U"-Shaped Springs

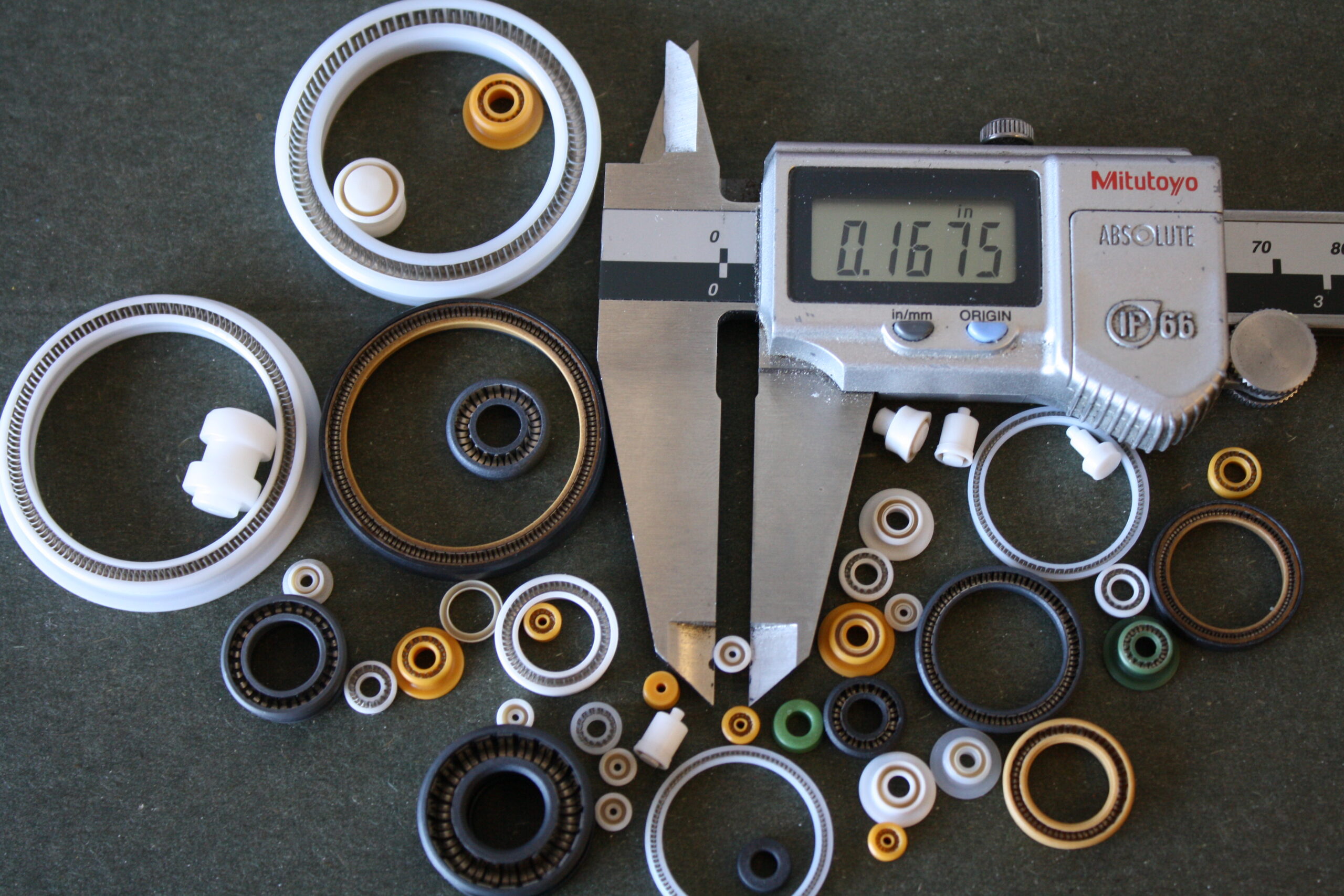

Used for small diameter applications
Common in HPLC, medical, and pharmaceutical industries
Material Options
316, 304, 301 Stainless Steel
Elgiloy™
Custom materials available
Cantilever Spring Material Options
316, 304, 301 Stainless Steel
Elgiloy™
Custom Materials

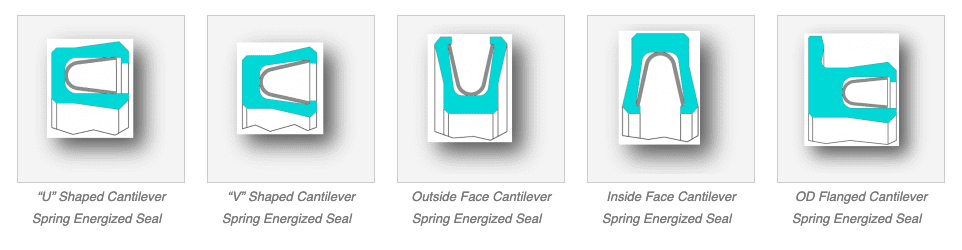

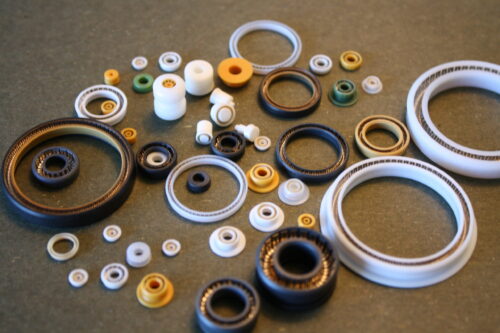

Types of Cantilever Spring Seal

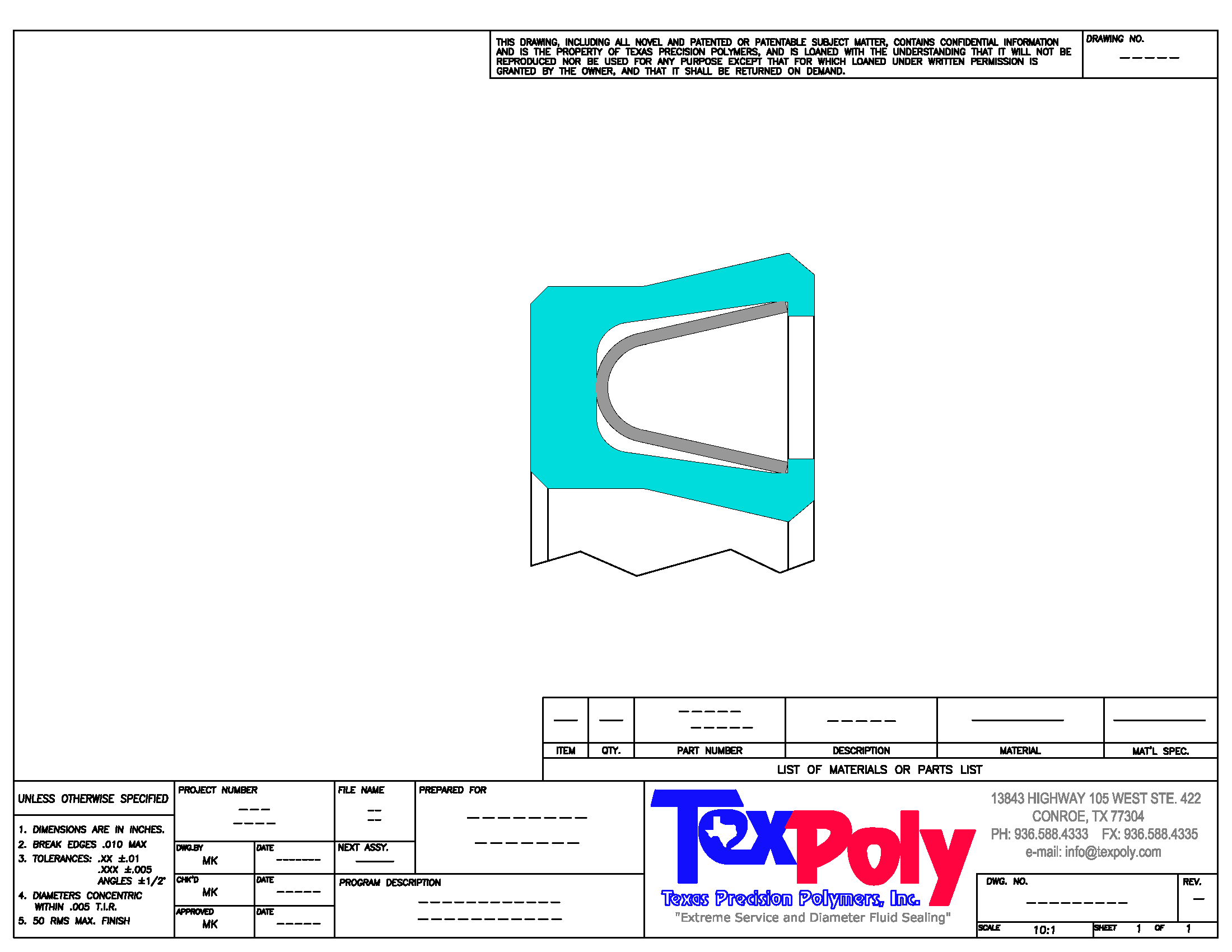

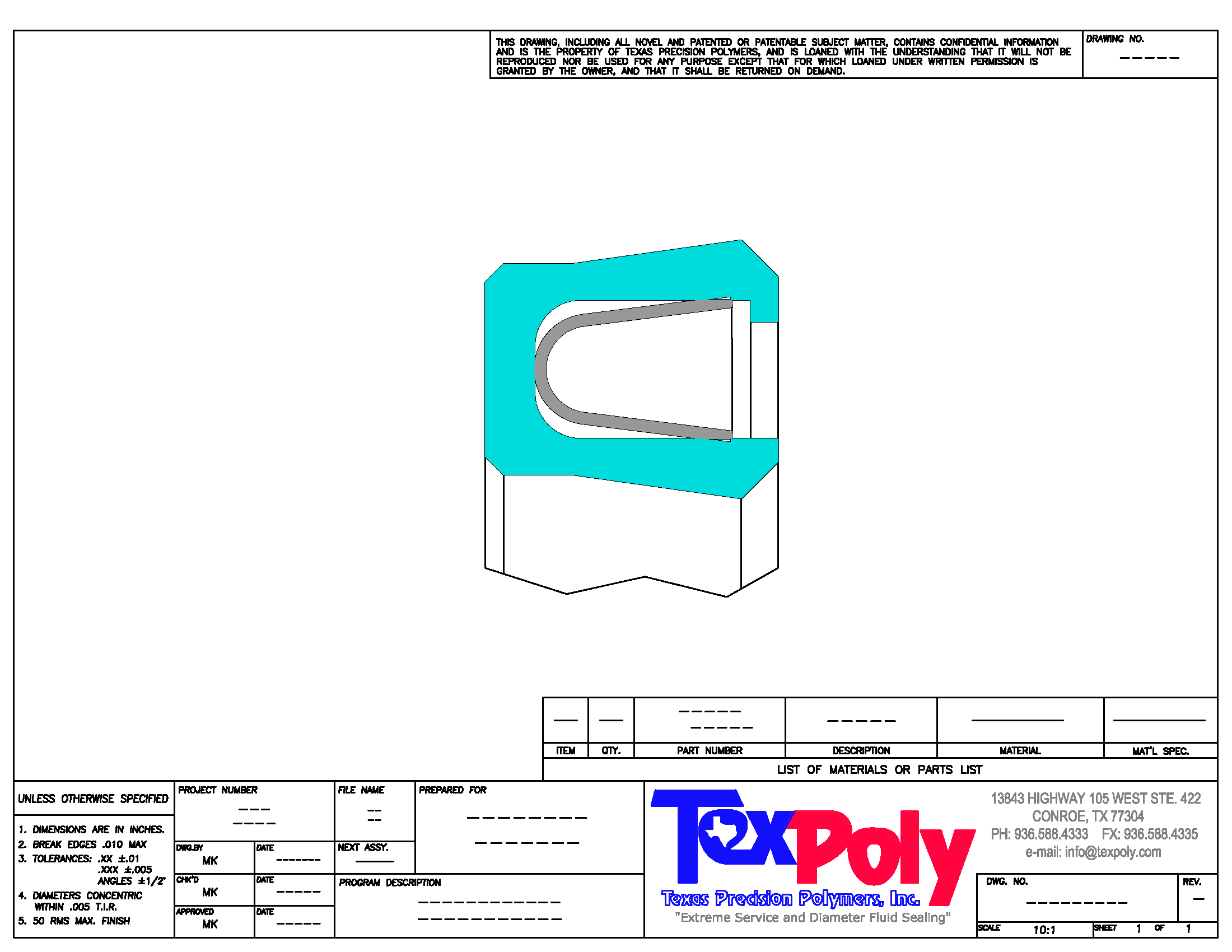

"U" Shaped Catilever Spring Energized Seal

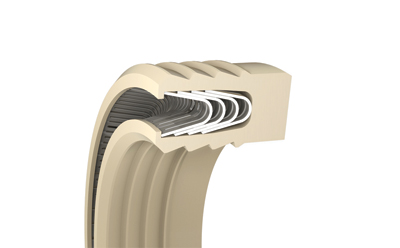

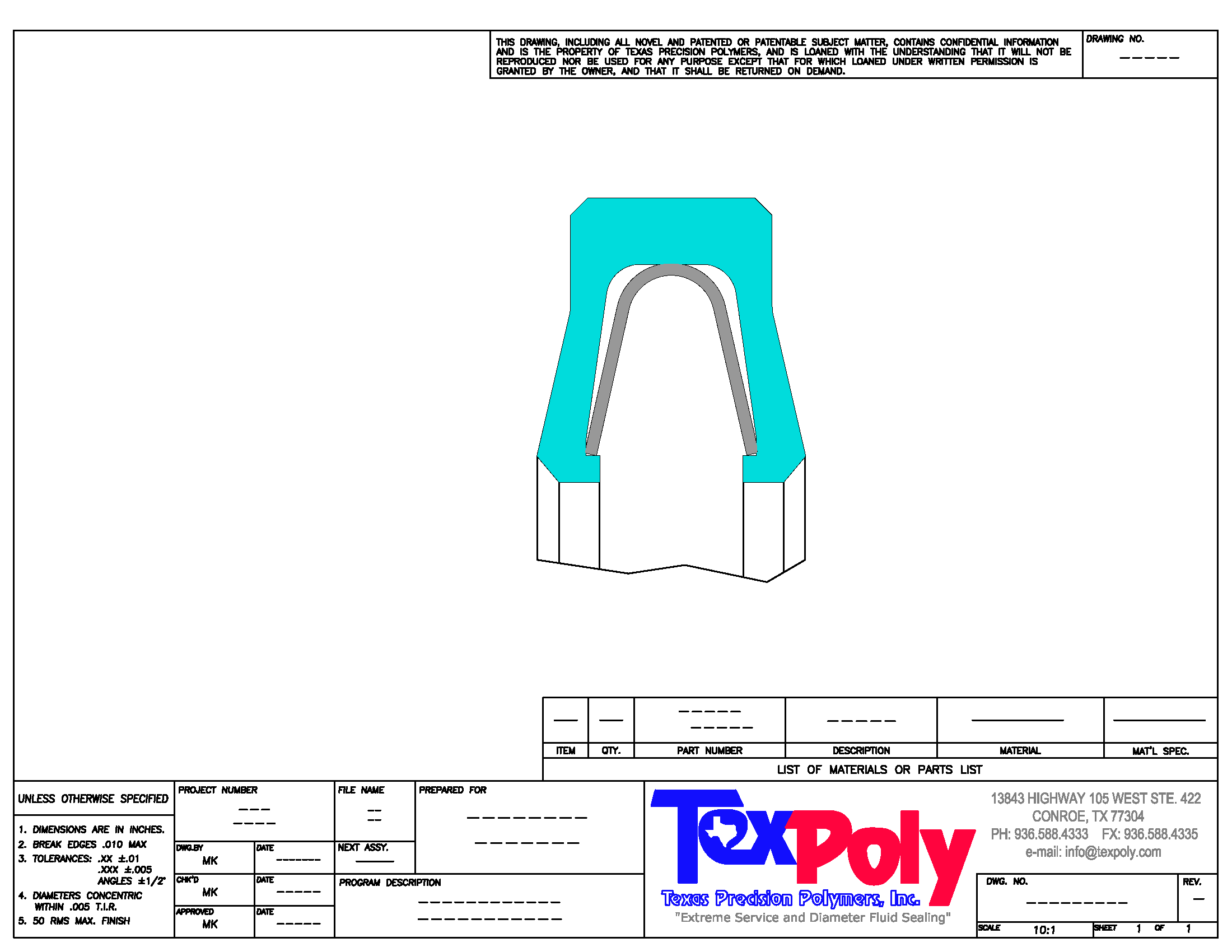

"V" Shaped Catilever Spring Energized Seal

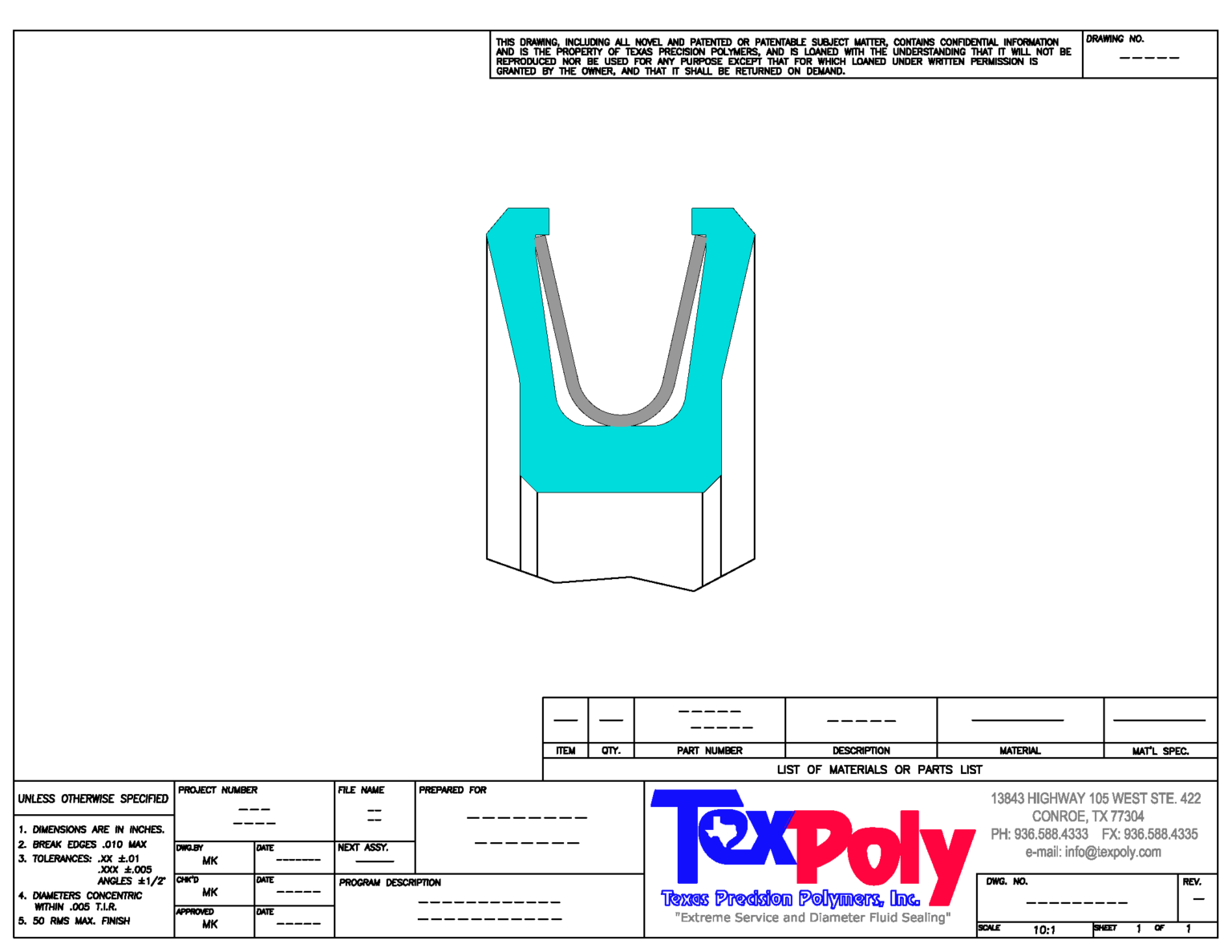

Outside Face Catilever Spring Energized Seal

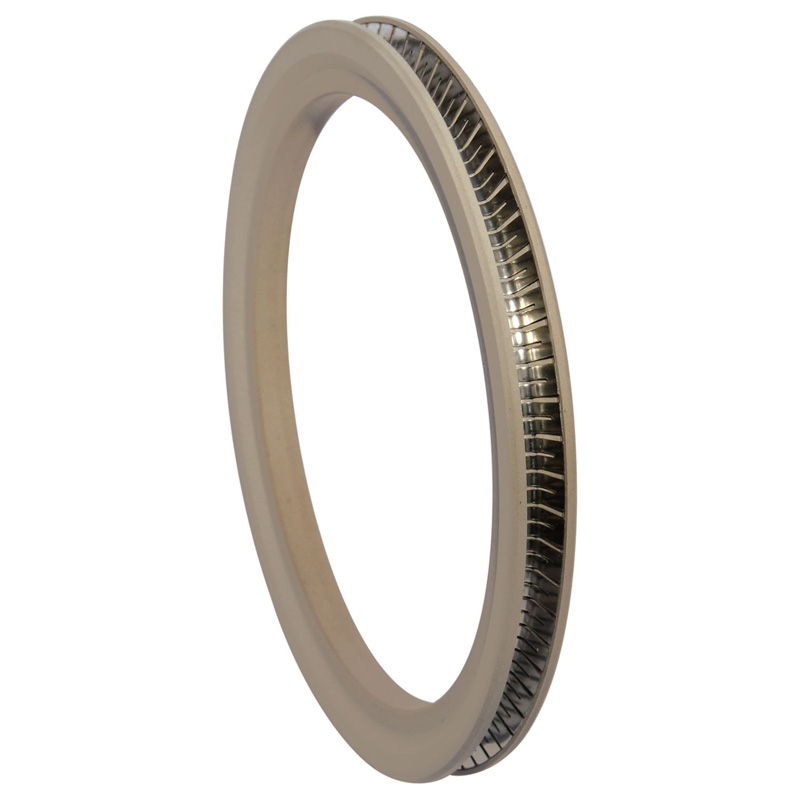

Inside Face Catilever Spring Energized Seal

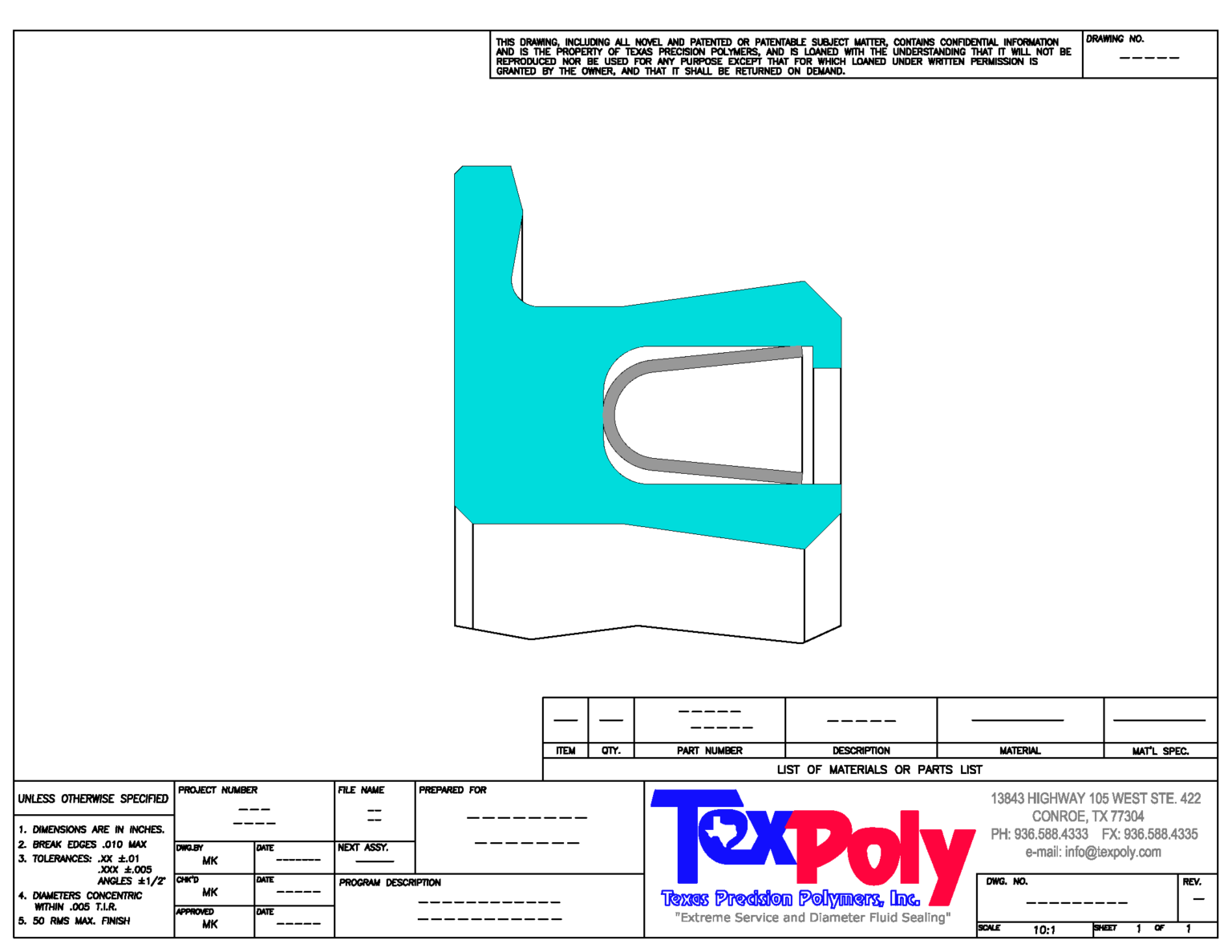

OD Flanged Catilever Spring Energized Seal
